Meters - tons more than listed here
    API Meter Relay - An interesting part with an
      interesting but fairly useless scale that can be
      easily removed and changed. The movement is 5 ma
      full scale. The dial can be adjusted so that the
      pointer makes contact at any point between 0 and 5 ma.
      This could be used to make an offset detector or
      level alarm.                                           $25.00 [+]
   Ampex VU (rfe)                                            $95.00
   Audio Instrument Company- meter for IM distortion unit    $24.00 [+]
   Cramer model 636, elapsed time meter, 999.99  max,
     resettable, 115 volts, 60 cycles                        $23.00
   DeJur type 112, 100 microamp full scale, 1.75 inch square
     metal bezel, black face 100 ohm internal resistance.
     Many of our customers have used this meter to make a
     carrier level meter for their R-390 receivers. The
     original meters are 1 ma with a DCR of approx. 18
     ohms. Since these are 100 ohm, an 11 ohm in parallel
     and then an 8 ohm in series give the require result. - sold out
   DeJur Model 131, 0-100 microamp 1200 ohm DCR
     Same dimensions as above and same face. Can also be
     made to work as a R-390 carrier level meter (rfe)       $12.50 [+]
   Dejur 0-30VDC, 1 ma movement, made 1943                   $20.00 [+]
   Douglas (made by Marion) retro audio level meter
     These must have been made for a disk or wire recorder   $25.00 [+]
   Dumont VU meter (made by Weston) 1 ma DC basic movement   $--.-- [+]
   Euclid Equipment Co, model 600099, vibrating reed
     frequency meter, 57-63 Hz, 120 VAC                      $24.00
   EM 0 to 4 KV, 1 ma/volt 3.25 by 3"                        $15.00 [+]

   GE Elapsed time meters
   General Electric type 236 Time Meter
             50-236301AAAA3 120 VAC 60 Hz                    $--.--
   General Electric type 236 Time Meter
             50-236302AAAA3 120 VAC 60 hz                    $75.00 [+]
   General Electric type 236 Time Meter
             50-236322AAAA3 120 VAC 60 hz                    $75.00 [+]
   General Electric type 236 Time Meter
             50-236402AAAA3 120 VAC 60 Hz                    $75.00
   General Electric type 240 Time Meter
             50-240311AAAB1 120 VAC 60 Hz                    $90.00
   General Electric type 240 Time Meter
             50-240311AEAB1 240 VAC 50 Hz                   $100.00

   General Electric wide-vu 300 VAC  (rfe)                   $24.00
   General Electric 5 ma DC                                  $31.00 [+]
   General Electric MR36W1R5DCAAR 1.5 amp DC fs, 3.5" dia.   $45.00
   Hallicrafters SX-43 S meter, rfe, fair condition          $--.--
   Haydon General Time R3022 elapsed time meter. 6 digit
     99999.9 hours, max in .1 hour increments, resettable
     240 volt 60 cycle                                       $32.00
   Hickok 44-250 giant volt meter                            $40.00 [+]
   Hobbs run-time meter, 4-40 volt DC, 0-9999.9 hours
             in 1/10 th of an hour increments                $35.00 [+]
   Hobbs MI-255 engine hour meter, 24 VDC                   $100.00
   Honeywell meter for TS-617B/U Q meter, 100 microamp fs
      - special thanks to EK for this information            $30.00 [+]
   Honeywell H53Z MR36W1H1DCUAR, 100 microamp 0 center       $75.00
   Honeywell H53Z 150 microamp 0 center                      $39.00
   Honeywell MM3 VU meter                                    $95.00
   Hoyt model 582 0-25 amp DC, 3.5" dia                      $24.00 [+]
   Ideal VU meter, 1.75" by 1.75"                            $25.00 [+]
   Ideal model D654 elapsed time meter, 9999.9 max hours,
    .1 hour increments, 120 volt 60 cycle                    $25.00
   International Instruments model 163 ruggedized VU,
      same as construction and scale as Ideal                $25.00
   Jackson - meter for Jackson VOM                           $20.00 [+]
   Jackson - meter for model 636 tube tester                 $65.00
   Jackson - meter for model 707 tube tester                 $65.00
   Jackson  meter for model 2000 tube tester                 $65.00
   Many other Jackson tube tester meters. Please inquire!
   JBT line frequency meter 30FG- dual scale 50/60 hz        $35.00 [+]
   JBT 15-FHAC 60 and 400 Hz vibrating reed frequency meter  $35.00
   JBT 21-FX 50 Hz, 100-130 volt vib. reed frequency meter   $35.00
   Link Carrier meter, Simpson 1703,   2.9375 by 3.0625"     $95.00
   Link Line Level meter, made by Simpson
       2.9375 by 3.0625". +6 dbm fs                          $95.00
   Marion HS1 50 microamp fs (rfe)                           $35.00
   Marion HS3 MR36W200DCUAR 200 microamp fs, 3.5" dia
       beautiful - with separate metal bezel                 $50.00
   Marion H53 3R36300ARVV 300 VDC fs (rfe)                   $29.00
   Marion HS3 MR36W025DCMA 25 ma DC fs (rfe)                 $25.00
   Marion HS2 MR26W1H1DCUAR 100 microamp zero center (rfe)   $27.00
   Marion HS3 null indicator 10-0-10 (rfe)                   $50.00
   Marion 5 ma DC fs, square, 2.9375" by 3.0625"             $25.00
   Marion 5 ma fs                                            $15.00 [+]
   Mercury  model 301 tube tester meter                      $50.00 [+]
   Mercury  model 801 tube tester                            $50.00
   Mercury  Mercury tube tester meter                        $45.00 [+]
   Mercury - meter for mod. 4000 VTVM                        $15.00 [+]
   Many other Mercury meters. Please inquire

   Modutec 1 ma - 0 - 1 ma meter
                      (2.25" by 1.75" rect face)             $10.00
   Phastron 400-11499 4.5" diameter (rfe)                    $25.00

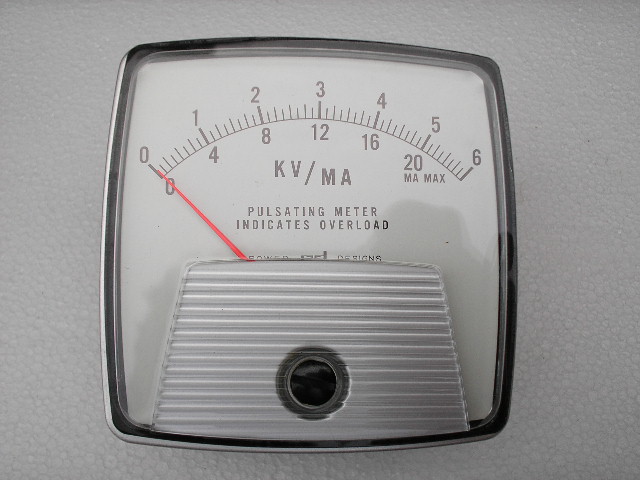

   Power Designs 50-162111EAEA2BDB, Made by GE,
      10KV/10ma scale, basic movement 100 microamp fs        $75.00 [+]
   Power Designs 50-162111EAFA2BDB, made by GE
      6 Kv, 6 ma fs, basic movement 2000 microamp fs
        This is for a Power Designs HV-1556 power supply     $75.00 [+]

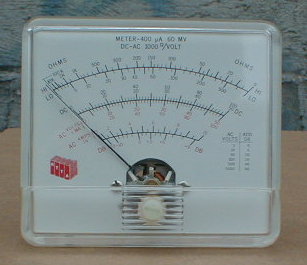

   Radio-Television Training Association (RTTA), These guys
      were on East 19th Street in New York, in the 40's and
      50's  multimeter scale, 400 micro amp full scale       $10.00 [+]
   Rowan VU meter - strange, very well made
                         with rectifier module               $25.00 [+]
   Rectifier module only (for Rowan VU)                       $7.00
   Sangamo dual scale - 500 microamp basic movement          $25.00 [+]
   Shurite model 850 AC ammeter - 3 amps fs                   $8.00 [+]
   Sierra Electronics VU meter, made by Simpson
     4.25" wide, 3.9375 tall, 3.25 mounting hole. Beautiful
    classic meter. Comes with mounting screws, and brass
    nuts for terminals. Mint condition.                      $95.00 [+]
   Simpson Model 27, cat no. 7450, 300 VDC fs,
        3" by 3", 2.75" mounting hole                        $45.00 [+]
   Simpson 35R MR36W001RFAAR 1 RF ammeter, 1 ampere fs      $100.00
   Simpson 182 MR15SDiDCAV, 1 ma fs 1.75" sq (rfe)           $15.00
   Simpson 1212C wide vue 2 amp DC FS                        $24.00
   Simpson model 1327, cat no. 9840, 500 VDC fs
        3.125" by 3.125", 2.75" mounting hole                $50.00
   Simpson 1 ma fs 100 ohm resistance (rfe)                  $12.00 [+]
   Simpson model 57ET elapsed time meter, 99999.9 max hours
         115 VAC 60 CPS                                      $75.00
   Simpson model 35R MR36150RFMAR 150 ma fs                  $75.00
   Simpson RF ammeter 2 amps fs 2.25" square face            $65.00
   Simpson 17909 RF ammeter, 10 amps RMS full scale          $75.00
   Simpson 137 1 ampere fs                                   $65.00
   Simpson 1339 RF ammeter 1.5 amps full scale               $60.00
   Simpson 244 DW 8748450-6, 5 amperes fs                    $65.00
   Simpson 6625-276-9711 AC ammeter, special scale           $99.00 [+]
   Sun 1R5ARF RF ammeter, 5 amperes full scale,
                  1.75" by 1.75" face                        $31.00 [+]
   Sun model 1922 100 microamps fs 1.75",
       square 900 ohm resistance (rfe)                       $15.00

   Triplett 327-T 5 ma DC FS                                 $25.00
   Triplett 327T - 200 ma full scale - square face,
                                       with a classic look   $24.00
   Triplett 331-S 10 vols AC FS                              $25.00

   Western Electric CW22395 25 ma face, 1 ma fs panel meter $100.00
   Westinghouse 300/600 VAC - dual scale - with shunt        $49.00 [+]
   Weston 301-57, 0-150VDC meter                             $20.00
   Weston 301, 1-150 VAC rectifier type, classic look (rfe)  $29.00
   Weston 308, S-42275, RF ammeter, 15 ampered fs            $85.00
   Weston 455, 150 and 300 volts AC or DC - used,
        very good condition - this is a bench meter          $45.00
   Weston Model 506, 1 ma FS, with P.A. Plate,
         P.A. Grid and Battery scale - super vintage
            2.5" dia, mounts in 2" dia hole                  $20.00 [+]
   Weston Model 506, SY-20161 ma FS, with output scale
      scale - super vintage 2.5" dia, mounts in 2" dia hole  $20.00 [+]
   Weston 528AC ammeter 3 and 15 amperes full scale,
     with leather case, and probes. In SEALED original
     packaging - this is a bench meter                       $60.00
   Weston 610 0-150 VDC square                               $65.00
   Weston 643A, 0-2 amps DC, 4 7/8" dia., very vintage!      $25.00 [+]
   Weston 732 VU meter (rfe)                                 $95.00

   Weston 802 VU meter (rfe)                                 $95.00

   Weston 813 meter relay 2-0-2 microamps,
      94-130 volt solenoid IBM dwg 352209 S-52065            $95.00
   Weston 840-4311 vu meter, 2.3175" by 2.3175"              $--.-- [+]

   Weston 840 Error scale, aircraft case, zero-center,
                50-0-50 microamp, bezel 2.3175" by 2.3175"   $25.00 [+][+]
   Weston 840 Feet scale, aircraft case, 0-1 ma basic        $25.00 [+]
   Weston 962 VU meter (rfe)                                $125.00
   Weston 1011, 153169 "output volts",
                               1 ma fs 1.75" sq (rfe)        $15.00 [+]
   Weston 1921 5821100 100 microamp fs 2.625" by 2.25"
   Weston 3532 ruggedized VU meter                          $125.00 [+]
   Weston 0-1 ma                                             $16.00 [+]
   Weston 1 ma fs, 100 ohm DCR (rfe)                         $12.00 [+]

   25-0-25 microamp, 0 center meter 100-0-100 scale           $8.00 [+]
   Meter for RCA BA-6B compressor - the real thing
                                           - new old stock  $175.00 (out of stock)
   Meter for Federal Limiter AM-864/U                       $199.00
   Meter for Hickok 118A Cardmatic tube tester (rfe)        $125.00
   Meter for Heathkit TT1 tube tester (rfe)                 $200.00
